The New Advance Performance series DYNO®-MILL ECM-AP is most impressive in both operation and technology. The most compelling features of this innovative series is the new separation system providing improved flow rates, the better ability to process even highly viscous products and the longer separating screen service life.
This new generation of bead mills enables the use of very small grinding media of 0.1 mm for the production of nano size particles for the finest formulations.
The DYNO-MILL® ECM-AP Series is also suitable for scale up throughout its range.
This offers the formulation chemists the opportunity to realise laboratory creations right through to production with accuracy and reproducibility.
|
 |
|
|
| New Separation System of the DYNO®-MILL ECM-AP |
 |

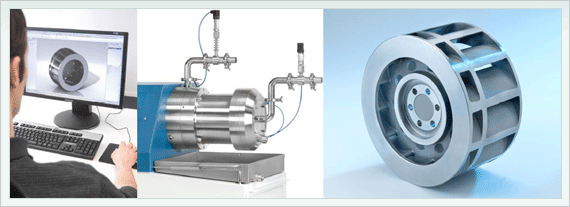

The new separation system of the DYNO®-MILL ECM-AP (1) shows a unique forced circulation of the beads at the mill outlet, resulting in an optimized suspension flow.
The circulation of the beads is caused by the newly developed inverted wall (4), which directs the beads into the axial direction over the screen (3). Afterwards, the DSE-Accelerator (2) directly conveys the beads back to the inverted wall.
|
|
|
 |
| Technical Data |
ECM-AP 2 |
ECM-AP 10 |
ECM-AP 20 |
ECM-AP 60 |
| Grinding Chamber Volume (l) |
2 |
9 |
22 |
62 |
| Mill Drive (kW) |
11 |
37 |
55 |
110 |
| Cooling Water Troughput (l/h) |
1000 - 1500 |
1500 - 2200 |
1800 -2500 |
3000 - 4000 |
| Weight |
600 |
950 |
1900 |
3700 |
| Dimensions |
1120 x 730 x 1420 |
1520 x 800 x 1760 |
1930 x 1040 x 2000 |
2360 x 1250 x 2120 |
| DYNO-Accelerator material Status March 15th, 2011) |
a) hardened chrome alloy
b) zirkonium oxide |
a) hardened chrome alloy
b) zirkonium oxide |
hardened chrome alloy |
hardened chrome alloy |
|
|
